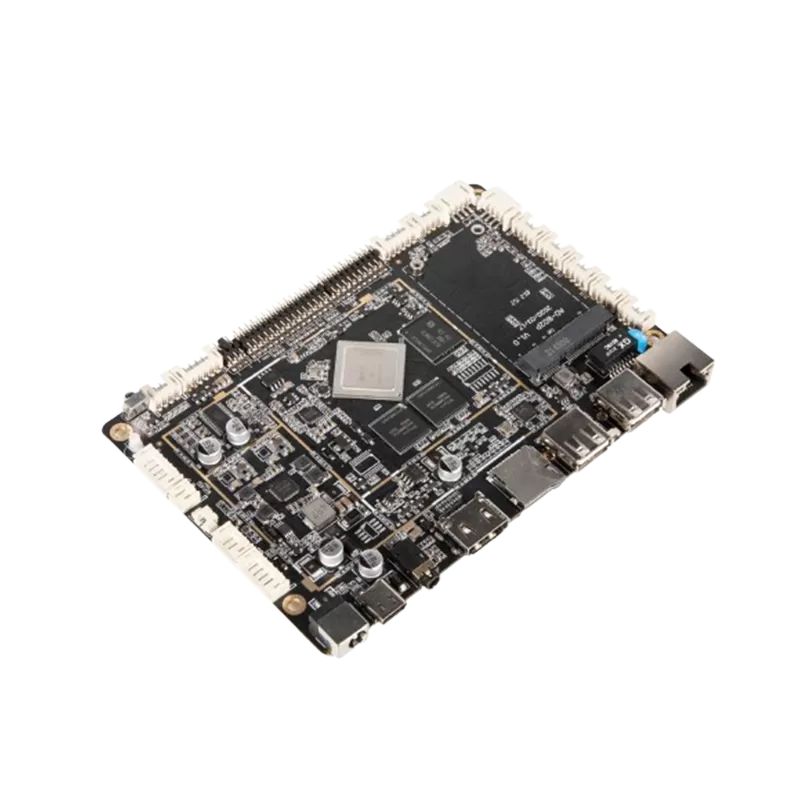

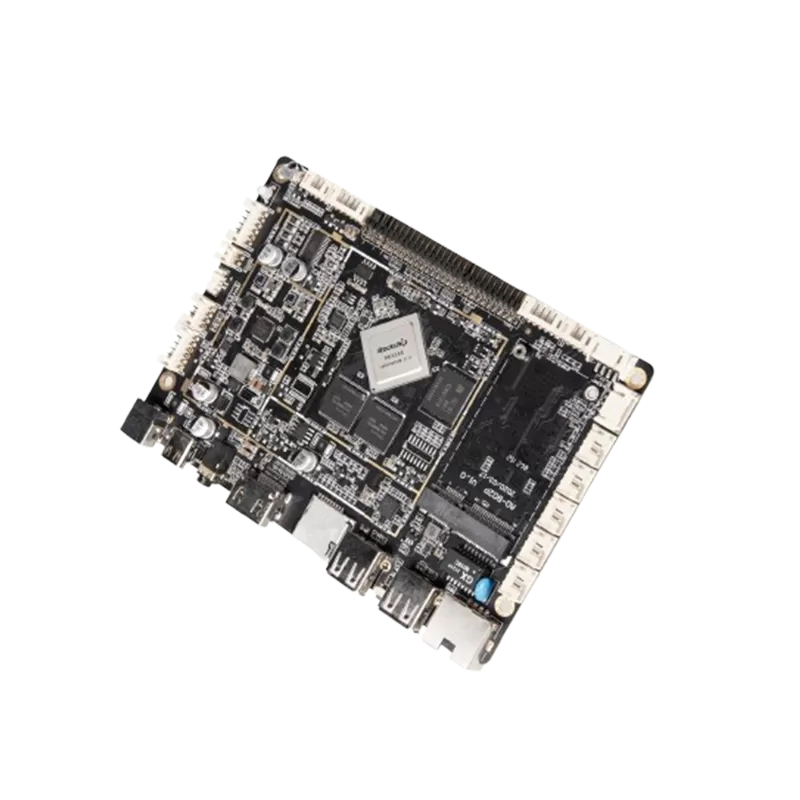

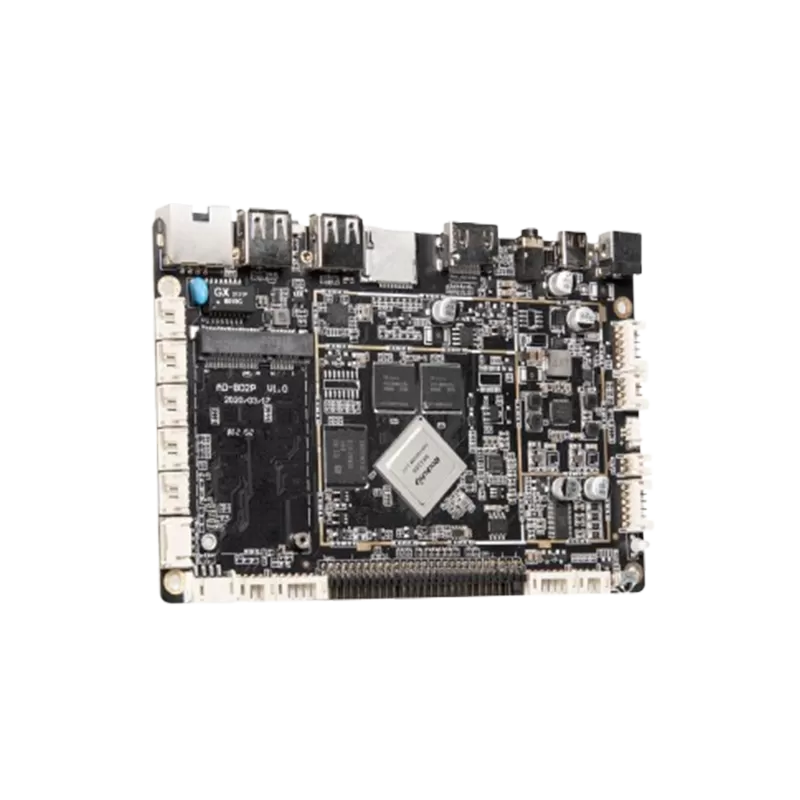

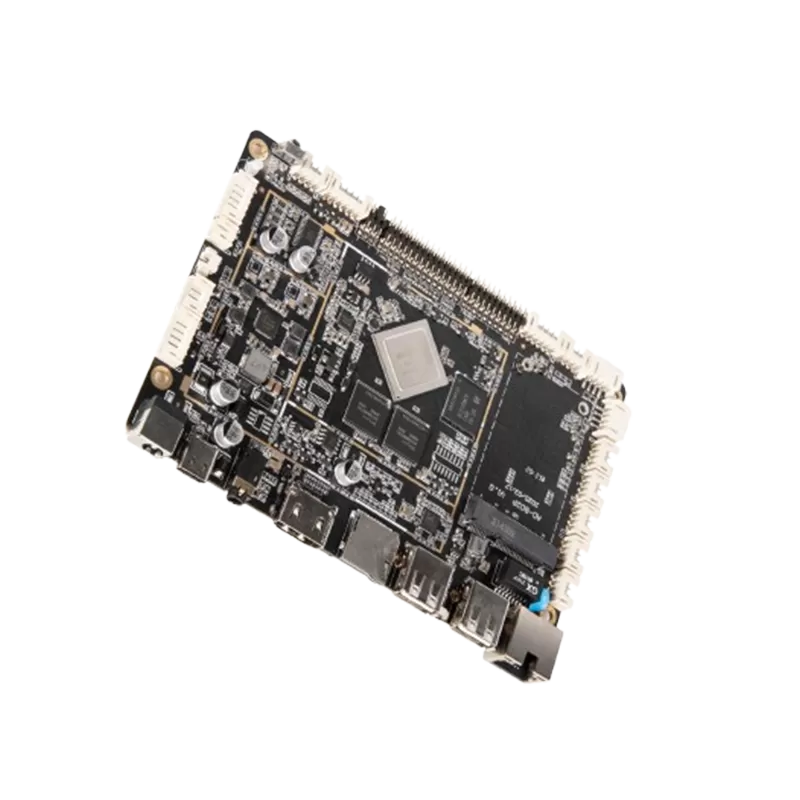

AD-B02P-RK3288 Android Board

Name: AD-B02P-RK3288
Brand: SHENZHEN SUNCHIP TECHNOLOGY CO., LTD.

Ensures stable 24/7 operation with optimized thermal performance, making it ideal for continuous commercial use in various environments.

Supports ultra HD H.264/H. 265 hardware decoding, delivering stunning visual clarity and smooth playback for high-impact advertising content without frame drops.

Enables simultaneous dual-display output with independent content control, allowing main video presentation alongside promotional information or interactive elements.

Including HDMI, USB, Ethernet and expansion interfaces (GPIO, I2C) support peripherals like touchscreens, payment devices and sensors.

Request A Free Quote Download PDF





Features of AD-B02P-RK3288 Android Board

High Performance

The RK3288 chip adopts a quad-core A17 solution, capable of playing high-definition videos in various formats and handling complex interactive operations.

High Stability

In terms of hardware and software, incorporates its own unique technology to ensure product stability, enabling the final product to operate unattended for 7*24 hours.

High Integration

It ntegrated Ethernet, wifi, Bluetooth, 4G, power amplifier, SD card, backlight power supply and other functions, greatly simplified the overall design.

High Scalability

It has 5 USB ports and 3 serial ports, allowing for the expansion of more peripheral devices.

Basic Hardware Specifications of AD-B02P-RK3288 Android Board

CPU	Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-1764
Main frequency	1.8 GHz
Deposit	LPDDR3 2G/4G Optional
Built-in storage capacity	EMMC 8GB/16G/32G/64G etc.optional
Display interface	LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-82" display
Display interface	EDP interface Maximum resolution 4K
Screen voltage	Support 3.3V/5V/12V optional
Touch screen	Support I2C touch screen, USB multi-point infrared touch frame, resistance, capacitive touch screen.
The internet	With RJ45 interface, support 10/100M Ethernet.
	Equipped with wifi &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
	With 4G module, support 4G network
Image rotation	Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation. support gravity sensor function (optional)
Real Time Clock	External real-time clock power supply battery
Interface device	Support MIPI camera
	Support HDMI output
	5 USB HOST (support usb camera@500W usb printer, U disk, mouse/keyboard and standard usb peripherals)
	3 groups of serial ports (1 group of UART, 2 groups of standard UART or optional RS232). Support external serial devices (NFC module, printer, card reader, etc.)
	3 IO detection ports
	TF card
	D class large built-in speaker, 5W*2 8R
	Support microphone
Audio	MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format
Video	Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Image	Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter	Input: AC100-240V,50-60HZ, Output: DC12V 3A

Basic Software Specifications of AD-B02P-RK3288Android Board

operating system	Android 5.1 and above
Basic software functions	Web browsing, web chat, email, e-book, resource manager
Sound effect mode	Clock, alarm clock, calculator, recording
language support	multi-lingual
recording	Support MP3, WMA format recording 3gpp, arm and other formats, according to the recording APK is different, the format is different, now the system comes with the arm format
tool	Calendar
	Alarm Clock
	Calculator
	Note
	Weather + clock
	Recording
Word processing	EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book	PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
schedule	Calendar
Input	Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
The internet	Browser –Chrome Lite
	Email
	Gmail
System Management	APK installer
	Original ecological Android system, open root permission, can carry out product customization development
	Real-time remote monitoring, self-recovery from system crashes, 7*24hours unattended
	System setting
	Global time
	Support OTA remote upgrade
