Optimized Power Efficiency
Utilizing advanced 28nm process technology, the PX30 delivers reliable performance while minimizing energy consumption, significantly reducing electricity costs for continuous digital signage operation.
Comprehensive Media Support
Supports 1080P video decoding and multiple image formats, ensuring smooth playback of various advertising content with stable frame rates for professional presentation.
Robust Thermal Management
Features optimized heat dissipation design that eliminates need for active cooling, ensuring silent operation and enhanced reliability in 24/7 commercial environments.
Flexible Connectivity Options
Provides essential interfaces including HDMI, USB, and Ethernet ports, supporting standard peripherals and network connectivity for diverse digital signage requirements.
The PX30 efficiently powers promotional displays in convenience stores and specialty shops, reliably playing 1080P product videos and advertising content to attract customer attention.
Ideal for small to medium offices, it drives internal communication boards displaying company announcements, meeting schedules, and real-time operational data dashboards.
Perfect for cafes and food courts, this board operates digital menu displays with scheduled content updates and promotional animations, enhancing food presentation and sales.
PX30 display integration involves matching the Android board with the LCD panel, backlight system, touchscreen controller and mechanical enclosure. SUNCHIP can support display adaptation for projects using LVDS, eDP or MIPI panels. Before recommending a board configuration, our engineers evaluate the panel’s electrical and timing requirements.
Please provide:
LCD panel brand and model
Complete LCD panel datasheet
Screen size and resolution
Display interface
Backlight voltage and current
Connector model and pin definition
Touch panel and controller information
Required screen orientation
Required brightness control method
Estimated order quantity
After receiving these materials, SUNCHIP can evaluate interface compatibility, firmware adaptation and any required hardware modifications.
For projects that need a board, display and touch panel supplied as an integrated assembly, you can also review our LCD SKD module solutions.
PX30 board customization adapts the hardware interfaces, Android firmware and display configuration to the requirements of a specific commercial device.
SUNCHIP provides end-to-end OEM and ODM services from initial requirement evaluation to sample development and mass production.
Available services may include:
PCB layout adjustment
Board size optimization
Connector position changes
USB interface configuration
UART, RS232 or RS485 integration
GPIO expansion
Camera interface adaptation
Audio circuit configuration
Wireless module selection
Power input modification
NFC, RFID or card reader integration
Custom daughterboard development
Firmware Customization
Available Android customization may include:
Boot logo and animation
Custom launcher
APK installation
Application auto-start
Kiosk mode
Display rotation
Touch driver integration
Peripheral driver adaptation
Root permission configuration
API development
Remote update
System recovery
Display Customization
SUNCHIP can assist with:
LCD panel matching
Display timing adjustment
Backlight configuration
Touchscreen calibration
Screen orientation
Connector adaptation
Cable design
Display and board testing
All customization services are evaluated according to technical feasibility, development workload, order quantity and project schedule.
A PX30 board is commonly used in Full HD embedded displays, industrial HMIs, smart control panels, information terminals, digital menu boards and entry-level interactive kiosks.
The PX30 platform supports display resolutions up to 1920 × 1080. The final supported resolution depends on the selected display interface, LCD panel and board configuration.
Rockchip’s official PX30 specification focuses on multi-format 1080p video decoding and display output up to 1920 × 1080. For native 4K projects, SUNCHIP normally recommends evaluating a newer board such as RK3566, RK3568 or RK3588.

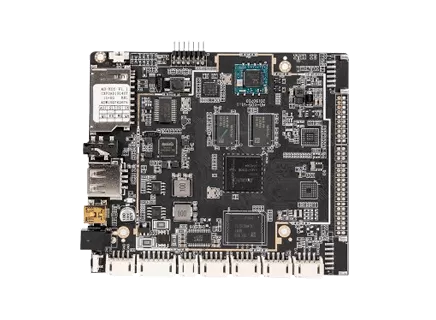

The AD-K05 PX30 board provides LVDS, eDP and MIPI display connections. Compatibility must be confirmed using the LCD panel datasheet.
Yes. The board can support I²C and USB touchscreen solutions. Final compatibility depends on the touch controller, driver and Android firmware.
The current standard AD-K05 configuration uses Android 8.1. Firmware customization and other system requirements should be evaluated for each project.
Yes. SUNCHIP can evaluate hardware interfaces, display drivers, Android firmware, connector layouts and peripheral integration through its OEM and ODM service.
The board provides USB and serial interfaces that may be used with printers, barcode scanners, NFC readers, card readers and other peripherals. The exact peripheral model and protocol must be evaluated before confirmation.
Choose PX30 for mature, cost-sensitive 1080p projects. Choose RK3566 when the application requires stronger processing, 4K multimedia performance or newer Android platform support.
Send SUNCHIP the complete LCD panel datasheet, touch controller information, connector definition and required resolution. Our engineers will evaluate the display interface and firmware adaptation requirements.
