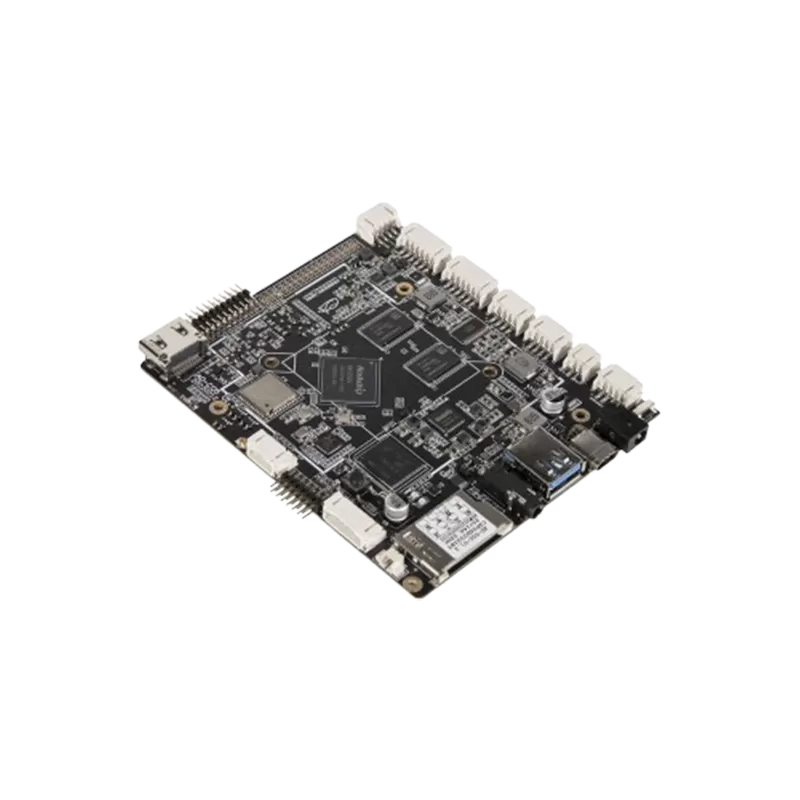

CPU | Rockchip RK3566 Quad-core 64-bit Cortex-A55 GPU Mali-G52 |
Main frequency | Up to 1.8GHz |
RAM | LPDDR4 2G/4G Optional |
Built-in storage capacity | EMMC 8GB/16G/32G/64G Optional |

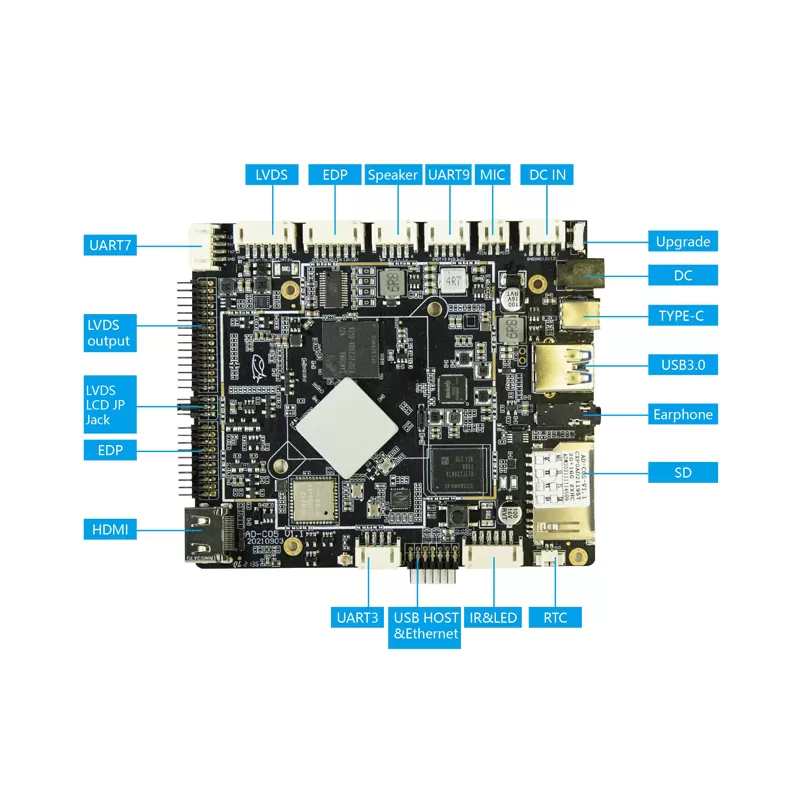

Display interface
| LVDS screen interface (MIPI and LVDS, choose one only) |
EDP screen interface |

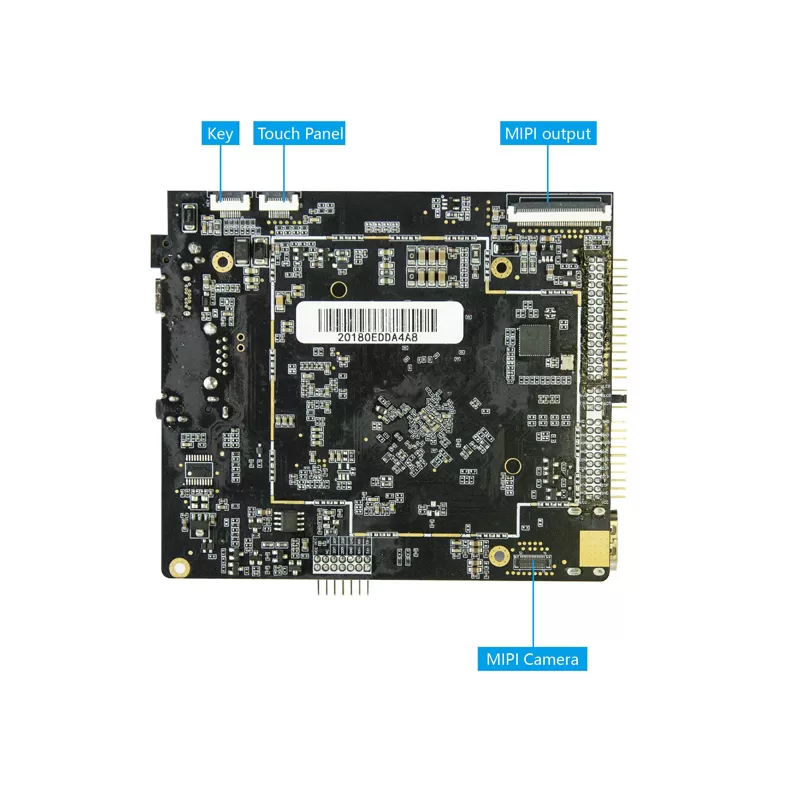

MIPI screen interface (MIPI and LVDS, choose one only) |
Screen voltage | Support 3.3V/5V/12V optional |
Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
The internet
| With RJ45 interface, support 10/100 Ethernet. |
Equipped with Wifi & BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 |
Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
Real Time Clock | External real-time clock power supply battery |
Interface device | Support MIPI interface camera, up to 500W pixels |
2 USB HOST (secondary board), 1 USB 3.0 (support usb camera @500W usb printer, U disk, mouse, keyboard, standard USB peripherals) |
3 groups of serial ports. Support external serial port device module (3G module, NFC module, printer, card reader, etc.) |
SD card, maximum support 32GB |
Class D power amplifier: 3W*2 8 ohms, support microphone |
HDMI 2.0 output |
Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP formats |
Video | Support 4K 60fps H.265/H.264/VP9 video decoding; support 1080P 100fps H.265/H.264 video encoding; support 8M ISP |
Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
