CPU | Rockchip RK3566 Quad-core A55 architecture |
Main frequency | 1.8GHz |
GPU | ARM Mali-G52 2EE |
OpenGL ES 1.1/2.0/3.2 |
Vulkan 1.1 |
OpenCL 2.0 |
Embedded with high performance 2D acceleration hardware |
NPU | 1TOPS computing power, support int8/int16 |
RAM | 2G DDR4 |
Built-in storage capacity | EMMC 16G/32G/64G optional |

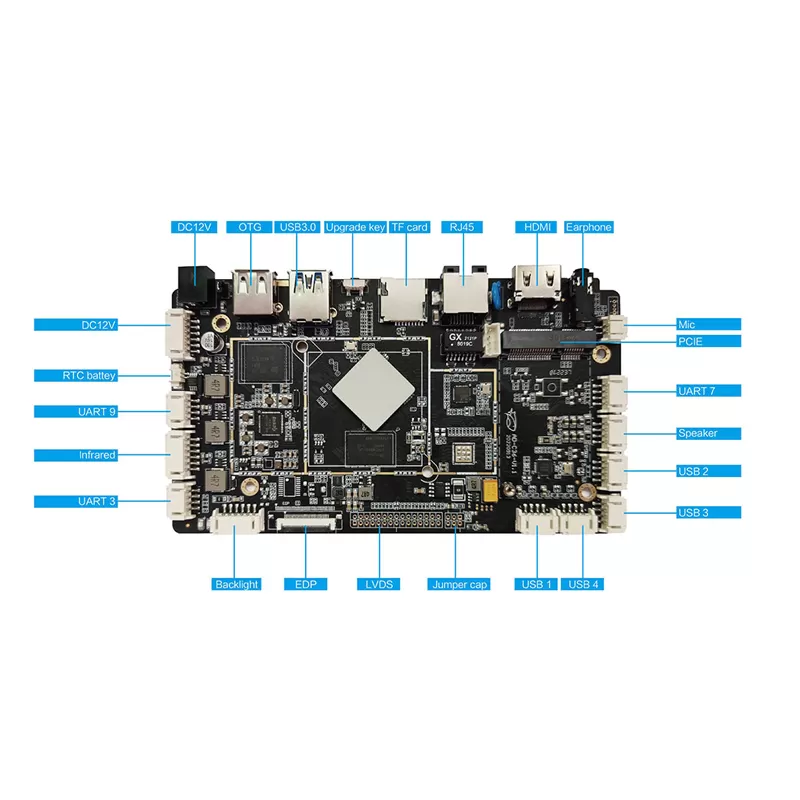

Display Interface | HDMI2.0（maximum support 4K@60FPS） |
MIPI display interface (MIPI and LVDS can only be selected as one) |
LVDS display interface (MIPI and LVDS can only be selected as one) |
EDPdisplay interface |
Screen voltage | 3.3V/5V/12V optional |
Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch) Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch. |
Network | With RJ45 interface, support 10/100M Ethernet. |
With Wifi & BT module, support Wi-Fi 802.11b/g/n protocol. Support BT4.0 |
Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual/automatic rotation, support gravity sensing function |
Real-time clock | Built-in real-time clock powered battery |

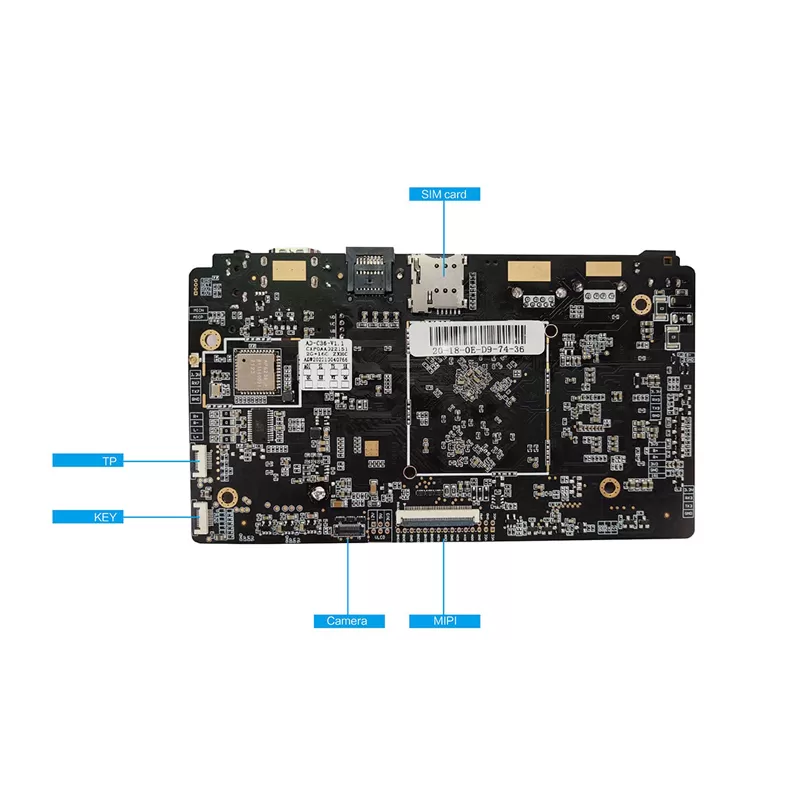

Interface device | Support MIPI interface camera, support up to 500W pixels |
4 USB HOST 2.0, 1 USB HOST3.0, 1 USB OTG (support usb camera @ 500W usb printer, USB stick, mouse, keyboard standard usb peripherals) |
2 groups of serial ports, support external serial device modules (NFC modules, printers, card swipes, etc.) |
TF card, supports up to 32GB |
Class D amplifier: 3W*2 8 ohms, microphone support |
Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG, M4A,3GPP |
Video | Support H.265/H.26/VP9 video decoding, up to 4K60FPS Support H.264/H.265 video encoding, up to 4K30FPS |
Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation/slideshow/image zoom function |
Power adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A（Internal positive and external negative） |
