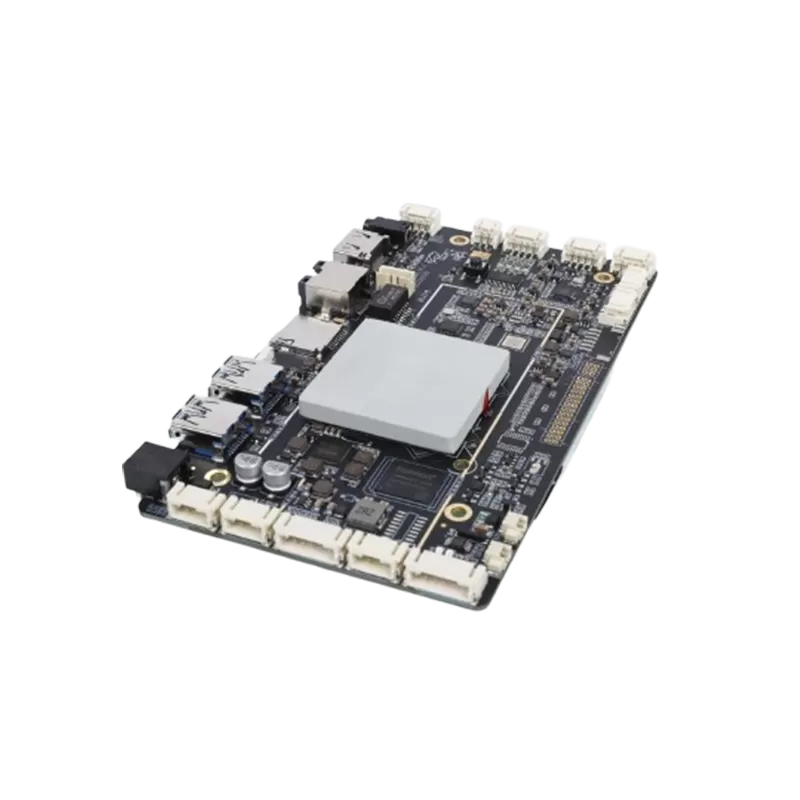

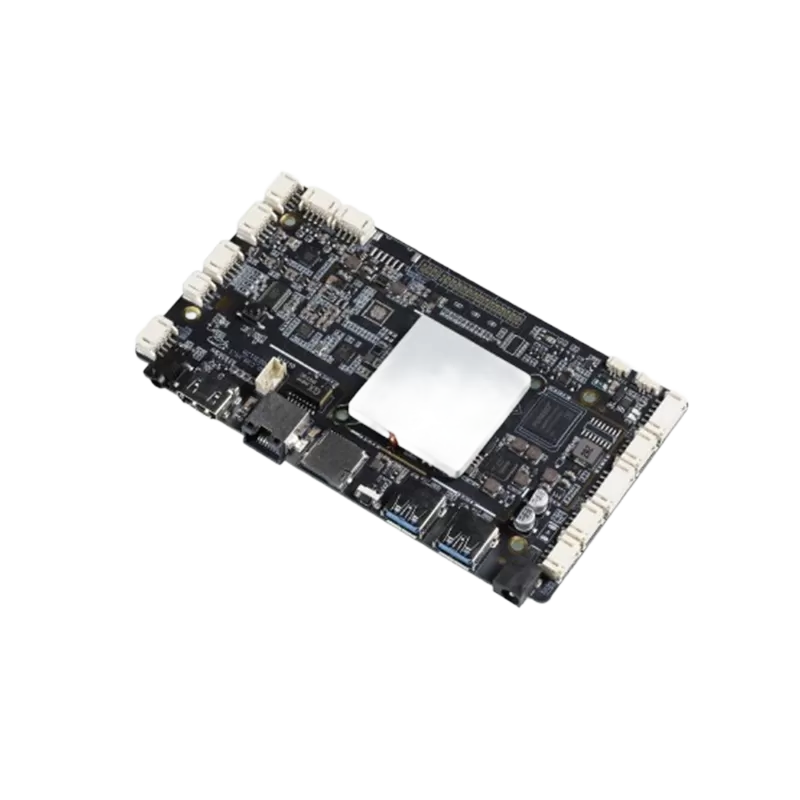

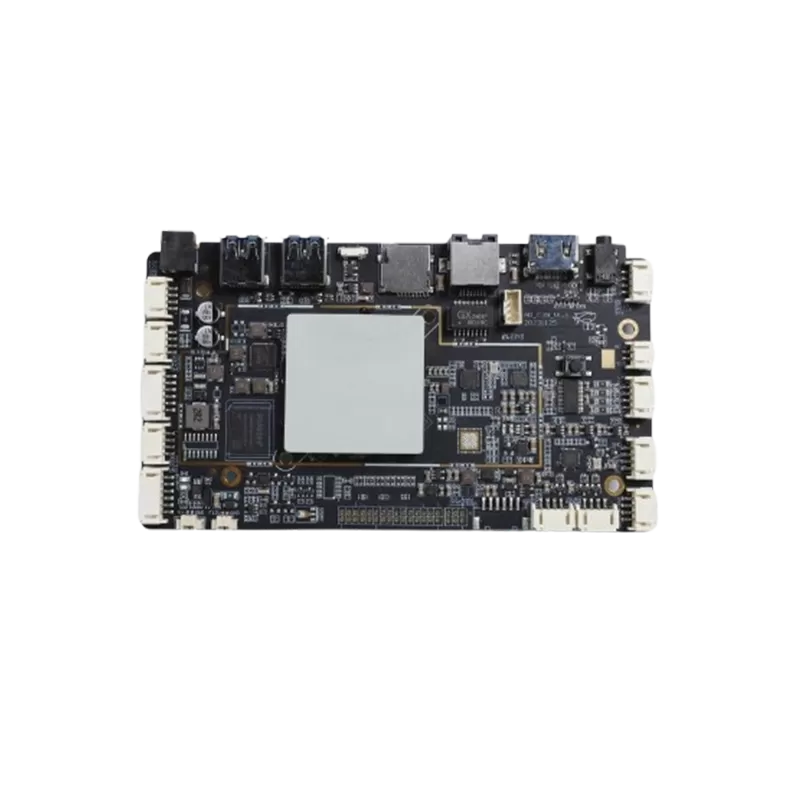

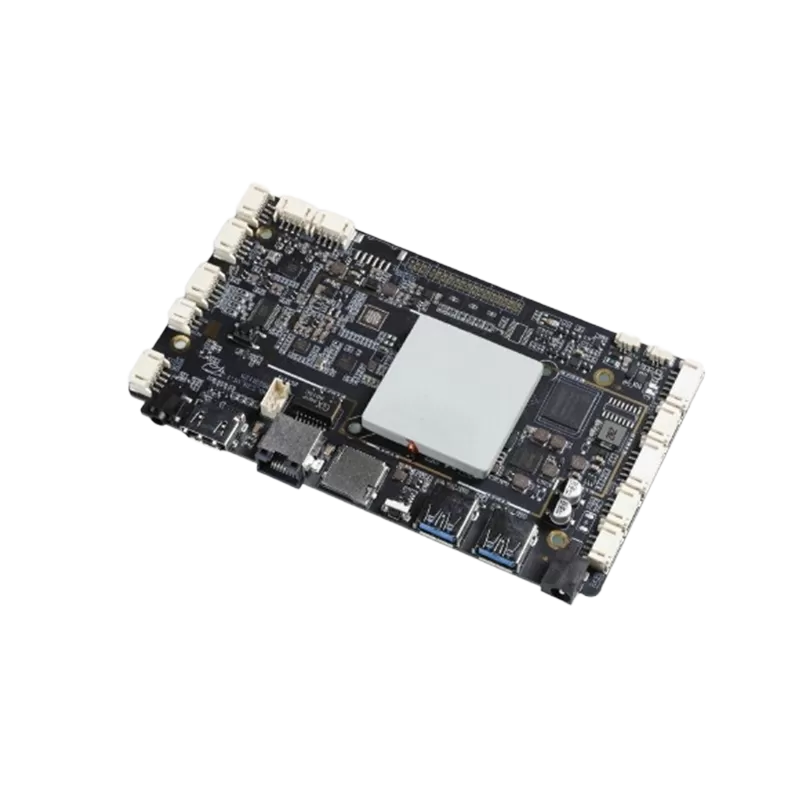

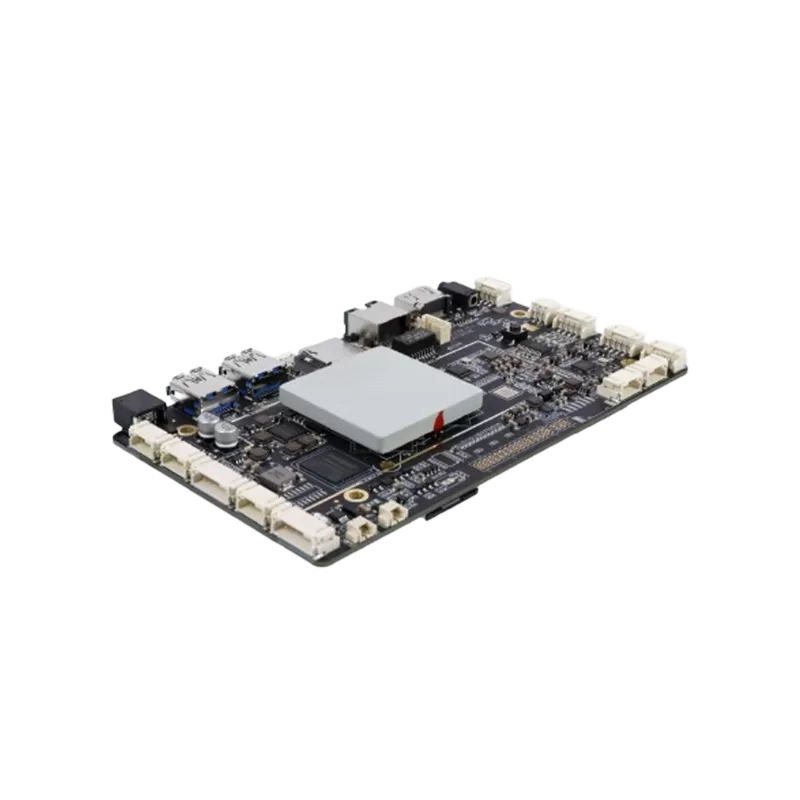

CPU | Rockchip RK3399 hexa-core
Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz |
GPU | ARM Mali-T860MP4 GPU Support AFBC (Frame Buffer Compression) |
RAM | LPDDR4 2G/4Goptional |
ROM | EMMC 16G/32G/64G optional |
Display interface | LVDS interface (MIPI and LVDS, pick one of two) |
MIPI interface (MIPI and LVDS, pick one of two) |
EDP interface |
LVDS screen voltage | Support 3.3V/5V/12V optional. |
Network | Equip with RJ45 interface, supporting 10/100M Ethernet. |
Equip with Wifi & BT module, 2.4GHz/5G, supporting wifi6
support Wi-Fi 802.11a/b/g/n/ ac/axprotocol support BT 5.3 |
Image rotation | Support manual rotation of 0, 90, 180 and 270 degrees, and support gravity sensing function. |
Real-time clock | External real-time clock power supply battery |
Interface equipment | Support MIPI camera |
2x USB3.0，including 1x USB OTG |
4x USB HOST (support USB camera @500W USB printer, USB drive, mouse and keyboard standard USB peripherals) |
2x UART (optional TTL/RS232), supporting external serial devices (NFC module, printer, card reader, etc.), 1x SPI. |
TF card, support 64GB max. |
Class D power amplifier: 5W *2 8Ω, supporting microphone. |
HDMI 2.0 Output |
Audio frequency | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
Video | Support H.264, MPEG-2, VP6, VP8, MVC and other video formats for 2160P@24FPS decoding, YouTube and other online videos, up to 4K, HTML5 video playback and Flash10.1 playback. |
Image | Support various image formats such as JPG, BMP, PNG, GIF, etc., and support rotation/image enlargement function. |
Power adapter | Input: AC100-240V, 50-60HZ Output：DC12V 3A |
