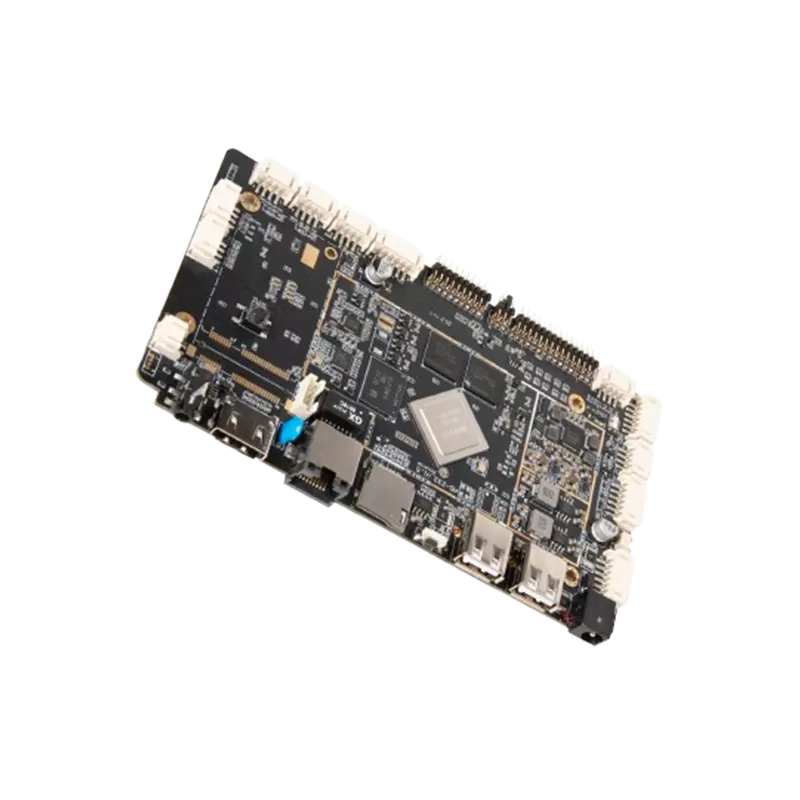

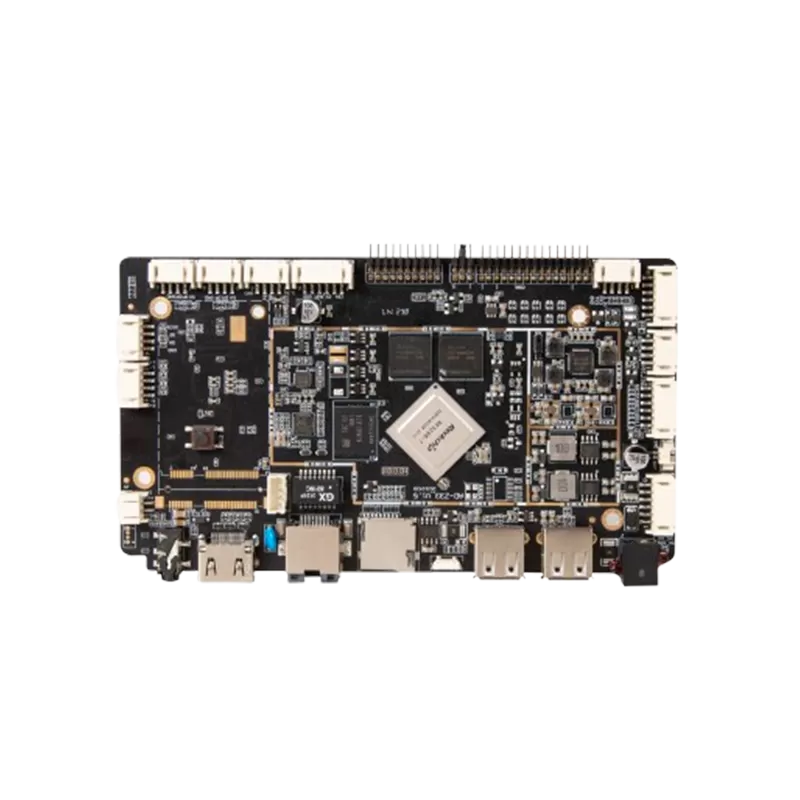

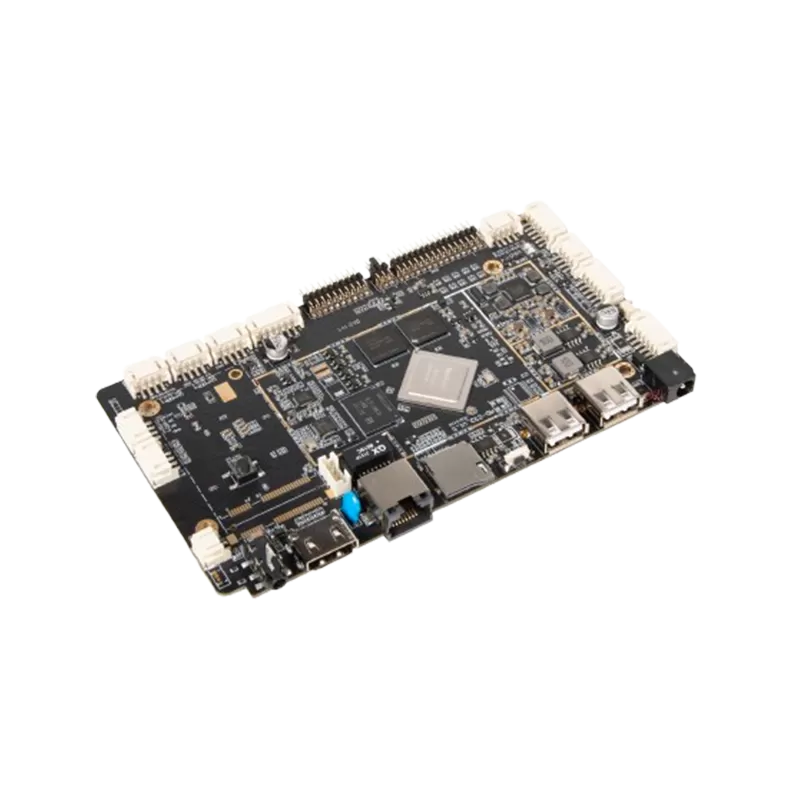

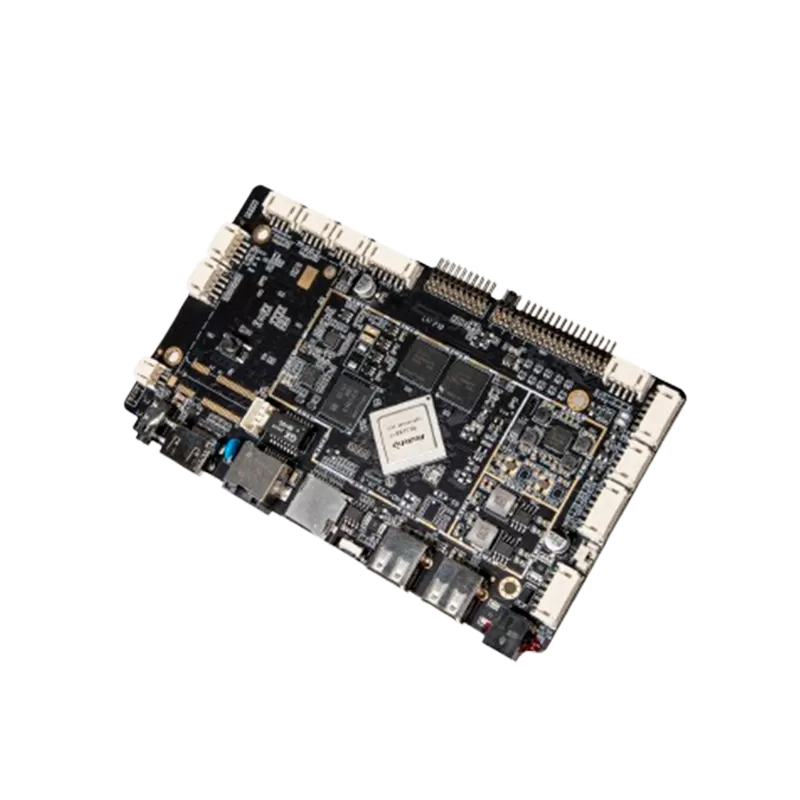

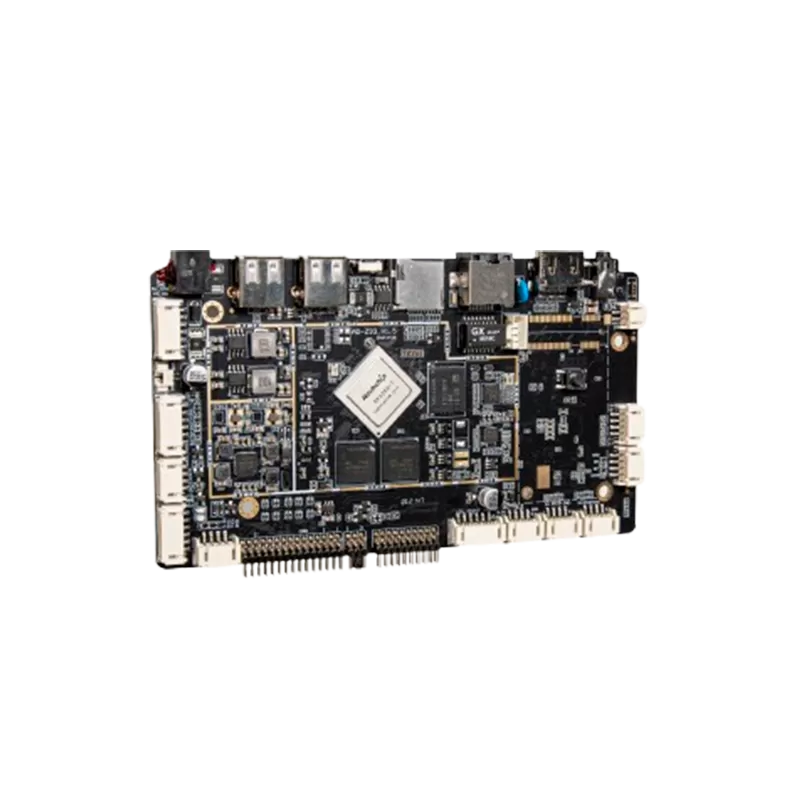

AD-Z33-RK3288 Android Board

Stable performance, power consumption and heat control is excellent, specially designed for business need long-term continuous operation scene.

Supports 4K H.264/H.265 video hard decoding, capable of smoothly playing high-end advertising and promotional videos with clear and smooth pictures.

Provide HDMI, USB, Ethernet, and other standard interface, and support the GPIO, I2C extension, easy connection touch screen, decoder, printers and other peripherals.

Supporting dual-screen different display greatly enhances the utilization efficiency and marketing value of advertising Spaces.

Request A Free Quote Download PDF





Features of AD-Z33-RK3288 Android Board

Multiple Interfaces

Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
Multi-channel USB interface, serial port.

Support LVDS

Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).

Support EDP

Support EDP interface display screen.

Electromagnetic Compatibility

Strong anti-electromagnetic interference and electromagnetic compatibility.

Basic Hardware Specifications AD-Z33-RK3288

CPU	Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764
Main Frequency	1.8 GHz
RAM	LPDDR3 2G/4G optional
Built-in storage capacity	EMMC 8GB/16G/32G/64G optional
Display interface	LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
Display interface	EDP interface
Screen Voltage	Support 3.3V/5V/12V optional
Touch screen	Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.
Internet	With RJ45 interface, Support 10/100M Ethernet。
Internet	With Wifi & BT Module, support Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation	Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function
Real Time Clock	Built-in (optional external) real-time clock power supply battery
Interface device	Support MIPI interface camera, up to 500W pixels
	4 USB HOST, 1 USB OTG（Support usb camera @500W usb printer, U disk, mouse, keyboard standard usb external equipment）
	3groups of serial ports. Support external serial port device modules (3G module, NFC module, printer, card reader, etc.)
	TF card, Support Max 32GB
	Class D power amplifier: 3W*2 8 ohms, support microphone
	HDMI 2.0 Output
Audio	MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP
Video	Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Image	Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter	Inout: AC100-240V.50-60HZ，Output: DC12V 3A

Basic Software Specifications AD-Z33-RK3288

Operation System	Android 8.0 and above
Basic software functions	Web browsing, web chat, email, e-book, resource manager
Sound effect mode	Clock, alarm clock, calculator, recording
Language support	multi-lingual
Recording	Support MP3, WMA format recording
Tool	Calendar
	Alarm Clock
	Calculator
	note
	Weather + clock
	recording
Word processing	EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
Ebook	PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule	calendar
Input	Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Network	Browser -ChromeLite
	GOOGLE Market
	Email
	Gmail
	Google talk
System Management	Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)
	The original ecological Android system, open root permissions, can be customized product development
	Customizable local or remote server management system
	Support a variety of third-party Android remote advertising publishing systems
	Support multi-channel serial devices, USB devices, IO control devices
