AD-Z37M-RK3288 Android Board

Stable performance, power consumption and heat control is excellent, specially designed for business need long-term continuous operation scene.

Small size supports 4K H.264/H.265 video hard decoding, capable of smoothly playing high-end advertising and promotional videos with clear and smooth pictures.

Provide HDMI, USB, Ethernet, and other standard interface, and support the GPIO, I2C extension, easy connection touch screen, decoder, printers and other peripherals.

Supporting dual-screen different display greatly enhances the utilization efficiency and marketing value of advertising Spaces.

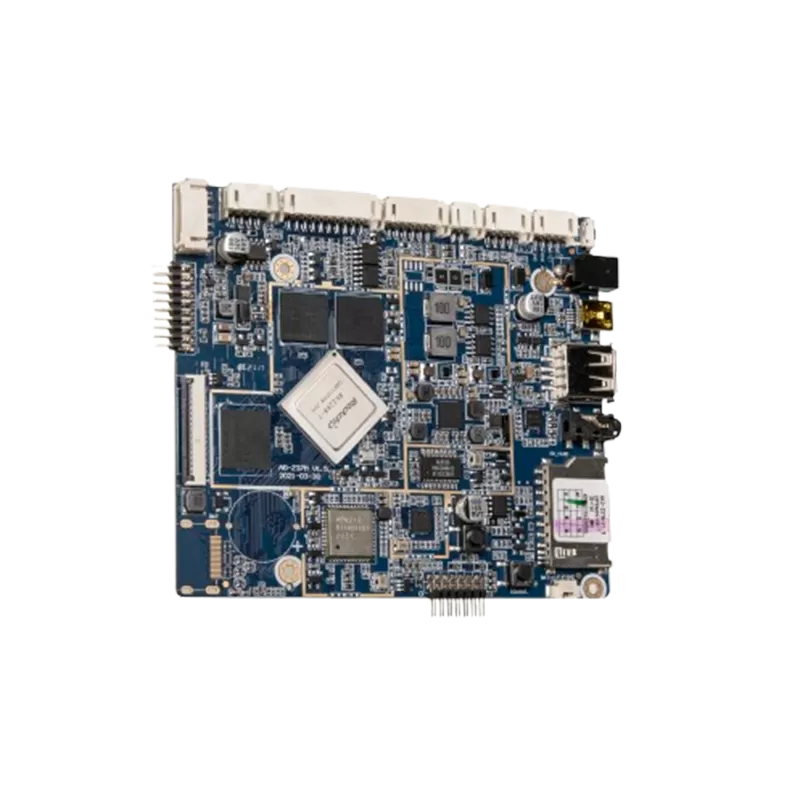

z37m rk3288 android board bulk

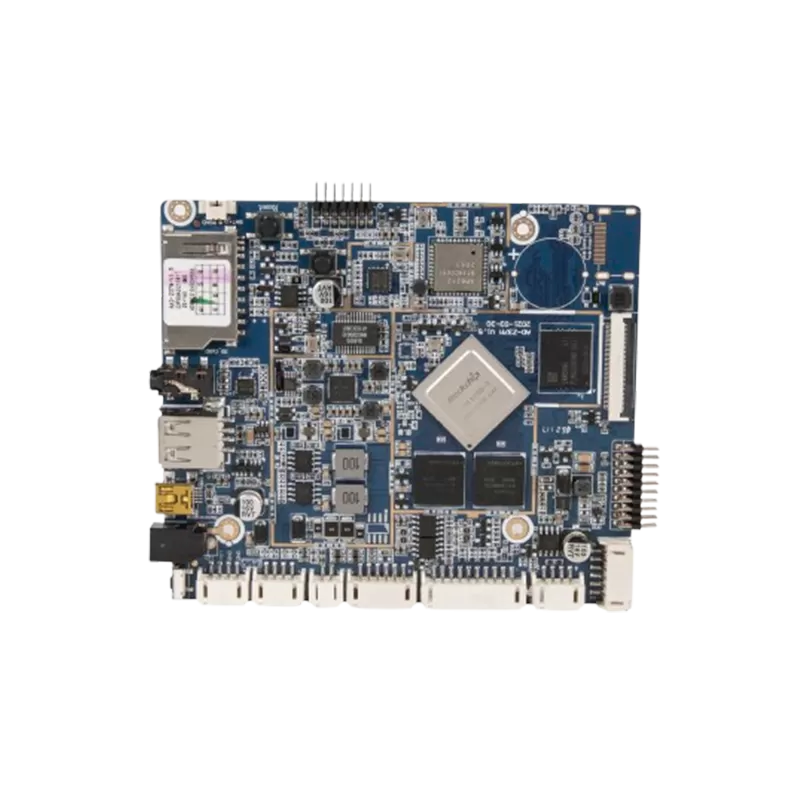

z37m rk3288 android board china
z37m rk3288 android board factory

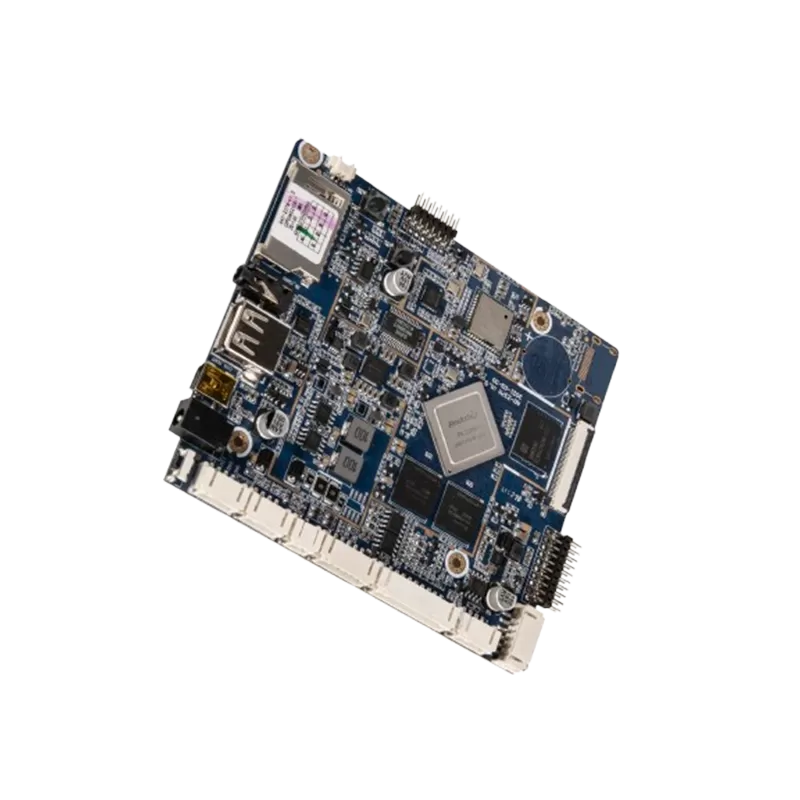

z37m rk3288 android board for sale

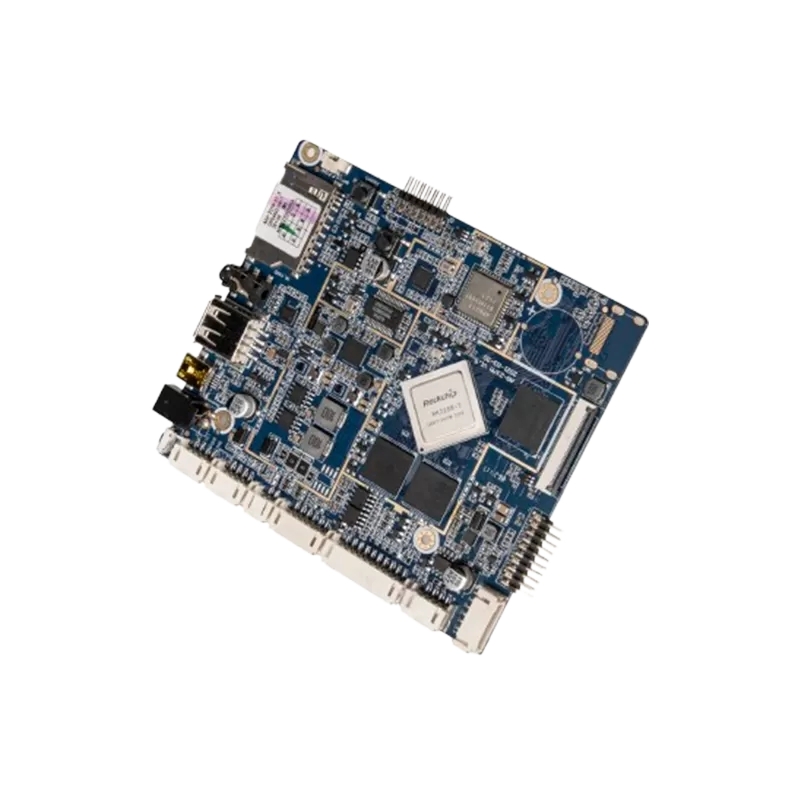

z37m rk3288 android board for use
z37m rk3288 android board bulk
z37m rk3288 android board china
z37m rk3288 android board factory
z37m rk3288 android board for sale
z37m rk3288 android board for use

Features of AD-Z37M-RK3288 Android Board

Support Interface

  • Support MIPI interface

  • Support EDP interface

  • Multi network interfaces: Ethernet, Wireless WIFI, BT

  • Multi interfaces: USB, serial ports

Multi Interaction Modes

Capacitive Touch, IR Touch, IR remote, USB keyboard/mouse, Multi-touch.

Support 4K

Support 4K video playback with HDMI 2.0 HD output.

Electromagnetic Compatibility

Strong resistance to electromagnetic interference and electromagnetic compatibility.

Basic Hardware Specifications of AD-Z37-RK3288

CPU

Rockchip RK3288 quad-core Cortex-A17 quad-core GPU Mali-T764

Frequency

1.8 GHz

RAM

LPDDR3 2G/4G Optional

Built-in storage capacity

EMMC 8GB/16G/32G/64G optional(defaulted 8GB)

Display interface

MIPI, Max. 1920*1080P.

EDP, max. resolution 4K

Mainboard backlight

Support 3.3V/5V/12V Optional

Touch screen

Provides I2C interface (can support multi-point resistance touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point sound wave touch, multi-point optical touch.

Network

With RJ45 interface, support 10/100 Ethernet.

With Wifi & BT module, support Wi-Fi 802.11b/g/n/ac protocol(optional) Support BT4.0

Image rotation

Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual/automatic rotation, support gravity sensing function

Real Time Clock

Built-in real-time clock powered battery

Interface device

Support MIPI Camera

4 USB HOST、1 USB OTG (Support usb camera @500W, usb printer, U disk, mouse, keyboard, standard usb peripherals)

Serial ports x 3. Support external serial device module (3G module, NFC module, printer, card reader, etc.)

SD card, maximum support 32GB

Class D power amplifier: 1.5W * 2 8 Europe, support for the microphone

HDMI 2.0 output format

Audio

MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP

Video

Support 2160P @ 24FPS decoding such as H.264, MPEG2, VP6, VP8, MVC and other video formats. YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play


Support JPG, BMP, PNG and other picture formats to browse and support the rotation/slide show/picture zoom

Power Adapter

Input:AC100-240V.50-60HZ, Ouput: DC12V 3A


Basic Software Specifications of AD-Z37-RK3288

Operating system

Above Google Android 4.4 & 5.1 /LINUX Debian

Basic software functions

Web browsing, web chat, e-mail, e-books, and resource managers

Sound mode

Clock, alarm clock, calculator, recording

Language support

Multi-lingual

Recording

Support MP3, WMA format recording

Tool

Calendar

Alarm Clock

Calculator

Note

Weather + clock

Recording

Document processing

EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT

Ebook

PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2

Schedule

Calendar

Input

Standard Andriod keyboard, optional third party input method (Chinese, Korean, Japanese, etc.)

Internet

Browser -ChromeLite

GOOGLE Market

Email

Gmail

Google talk

System Management

APK Installer

Original eco-Android system, open root privileges, can be customized product development

Real-time remote monitoring, system crash since recovery, 7 * 24 hours unattended

System setting

Google Maps

Global time

Support OTA remote upgrade



Android Board
