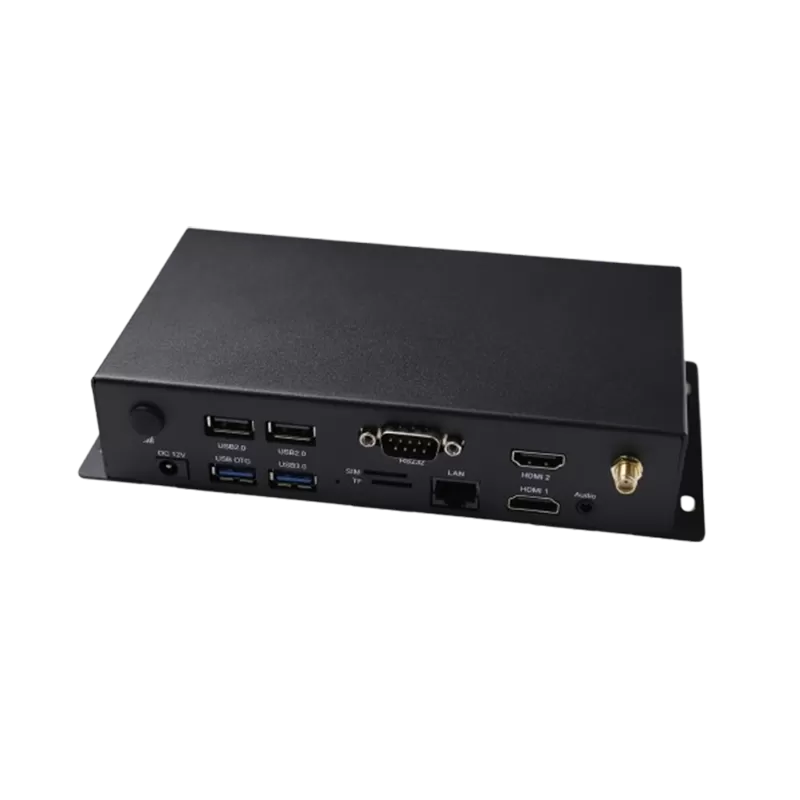

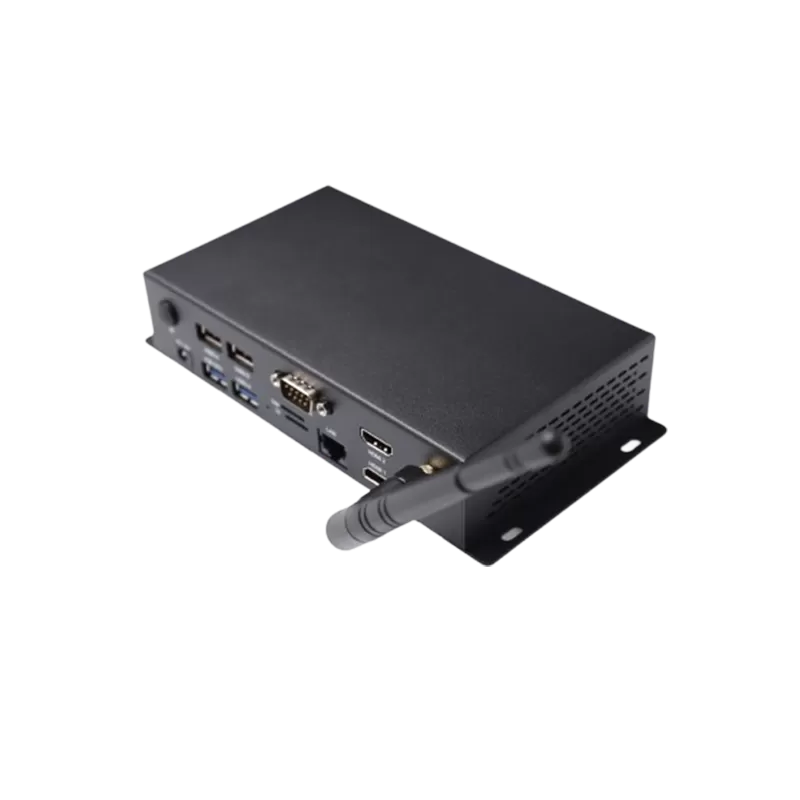

AD-0146-RK3568 Media Player Box

Powered by a quad-core Cortex-A55 processor and Mali-G52 GPU, AD-0146-RK3568 Media Player Box delivers smooth 4K video decoding and versatile connectivity for commercial applications. Supporting dual-display output and H.265/VP9 formats, it ensures efficient multimedia playback. With Gigabit Ethernet, USB 3.0, and optional Wi-Fi modules, it enables flexible deployment in digital signage, interactive kiosks, and corporate environments. The industrial-grade design guarantees stable 24/7 operation with low power consumption.

Request A Free Quote Download PDF
ad 0146 rk3568 bulk
ad 0146 rk3568 china
ad 0146 rk3568 factory
ad 0146 rk3568 for china
ad 0146 rk3568 for sale
ad 0146 rk3568 for use
ad 0146 rk3568 suppliers
ad 0146 rk3568 wholesale
ad 0146 rk3568 bulk
ad 0146 rk3568 china
ad 0146 rk3568 factory
ad 0146 rk3568 for china
ad 0146 rk3568 for sale
ad 0146 rk3568 for use
ad 0146 rk3568 suppliers
ad 0146 rk3568 wholesale

Features of AD-0146-RK3568 Media Player Box

Support LVDS

Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).

Support Interface Displays

Support EDP interface display screen.

Support MIPI interface display screen.

Multiple Network Interfaces

Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth, 4G.

Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.

Multi-channel USB interface, serial port.

Electromagnetic Compatibility

Strong anti-electromagnetic interference and electromagnetic compatibility.

Datasheet of AD-0146-RK3568 Media Player Box

PRODUCT INFORMATION

Model No.AD-0146-3568

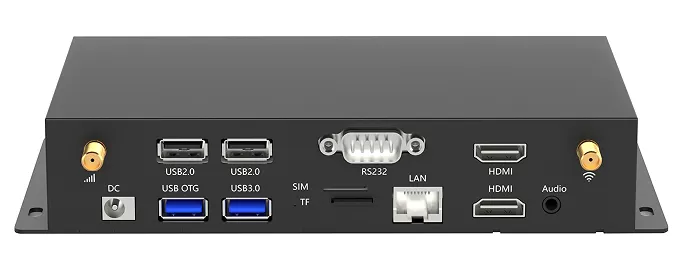

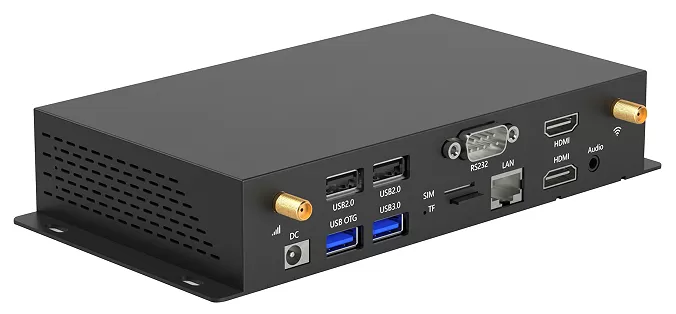

Datasheet of 0146-RK3568 Media Player BoxDatasheet of 0146-RK3568 Media Player Box


SystemCPUQuad-core 64 bits Cortex-A55，main frequency up to 2.0GHz
GPUARM G52 2EE, supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, Embedded with high performance 2D acceleration hardware
NPUSupport 1T computing power
RAM2GB/4G (optional)
Internal Storage16GB/32GB/64GB(optional)
OSAndroid 11
NetworkWiFiIEEE  802.11b/g/n(optional)
EthernetSupport 10/100/1000M Ethernet
Mobile NetworkSupport wireless 4G network(optional)
BluetoothBluetooth5.2
InterfaceUpper Layer InterfacesRS232RS232 com port male head DB9*1
USB 2.0USB 2.0_A*2
HDMI_OUT_2HDMI-A output supporting 1920*1080 60HZ
Lower Layer InterfacesDC holder*1DC_12V input 5.5*2.1mm plug
Headphone3.5mm stereo headphone output
USB_OTGUSB_A*1
USB 3.0USB 3.0_A*1
HDMI_OUT_1HDMI-A 2.0 output（supporting 3840*2160 60HZ）
SIM cardSIM card slot*1(optional)
Extended memory portTF card slot*1
ButtonButtonUpgrade button*1
Environmental ConditionsWorking EnvironmentTemperature: -20~60℃,5%-85%RH (No condensation)
Storage environmentTemperature: -20~70℃,5%-95%RH (No condensation)
MaterialShell materialMetal
SizeProduct SizeShell size: 190.6*98.9*34.7mm


Product Measurement(mm)

UnitInner boxCarton   pcs/CTN
LWHLWHLWH
190.698.934.7





Net(kg)

GW(kg)
GW(kg)

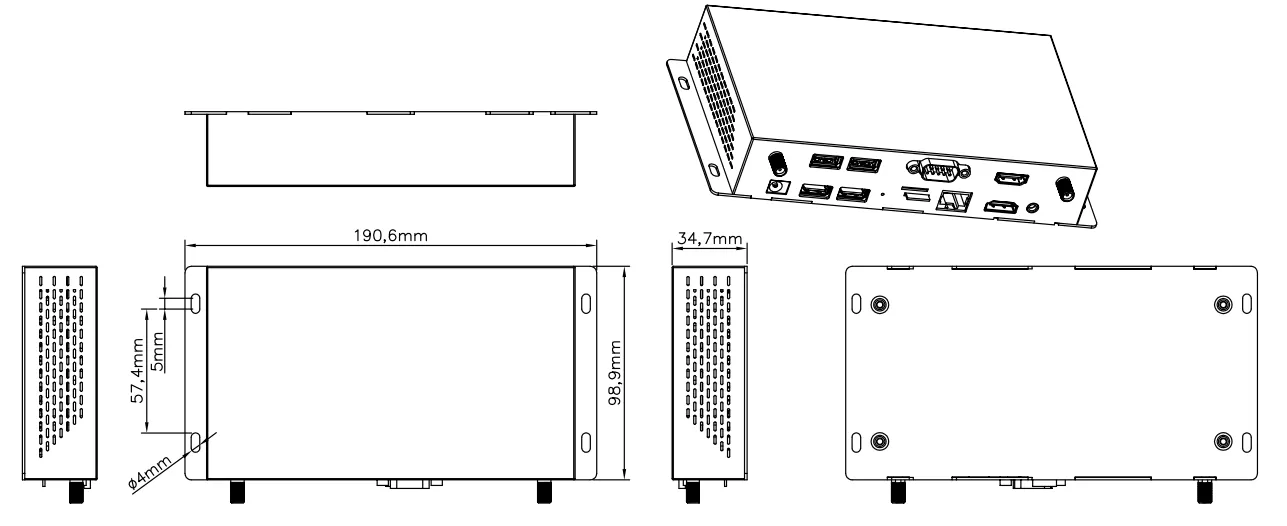

Structural Drawings

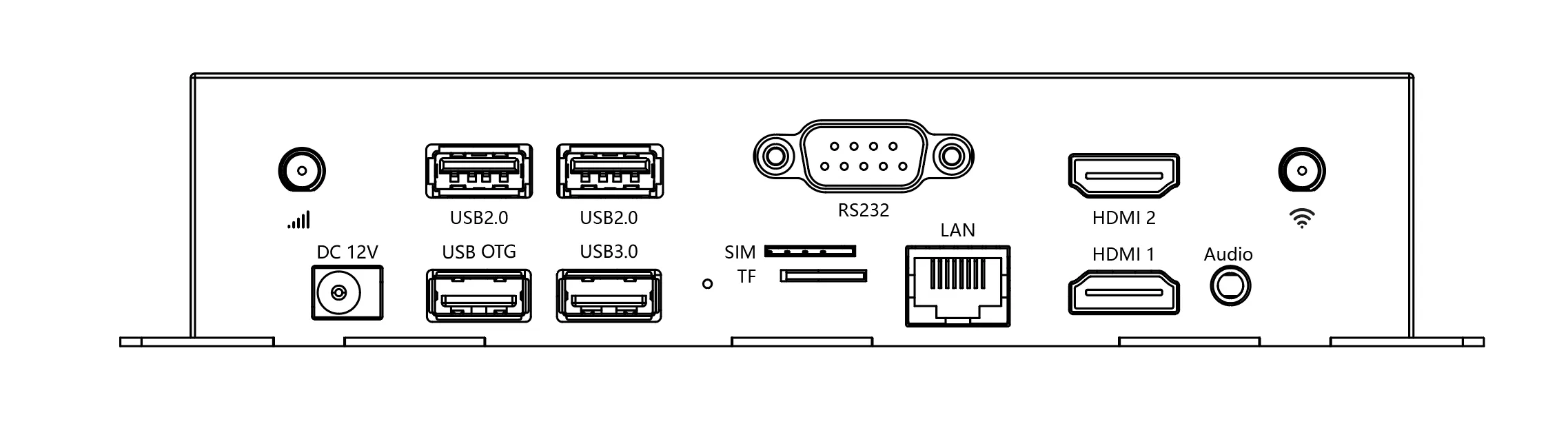

structural of 0146 rk3568 media player boxstructural of 0146 rk3568 media player box
