AD-0160-RK3588 Media Player Box

Name: AD-0160-RK3588
Brand: SHENZHEN SUNCHIP TECHNOLOGY CO., LTD.

Powered by an octa-core CPU and high-performance NPU, AD-0160-RK3588 Media Player Box delivers exceptional 8K video decoding and AI-enhanced processing. Supporting quad-display output and advanced interfaces like PCIe 3.0 and USB 3.1, it enables sophisticated multimedia deployments. Ideal for premium digital signage, interactive exhibitions, and control room systems, it ensures reliable 24/7 operation with robust thermal management and enterprise-grade security features.

Request A Free Quote Download PDF





Features of AD-0160-RK3588 Media Player Box

Support Interface Display

Support LVDS, MIPI, EDP interface display three-screen simultaneous/different display + HDMI OUT (up to 8K@60FPS), HDMI IN (up to 8K@60FPS).

Various Interactive Mode Interfaces

Capacitive touch, infrared touch, USB keyboard and mouse, multi-point optical touch.

Multiple Interfaces

Multiple network interfaces: Ethernet (Gigabit), Wireless Wifi (Wifi6), Bluetooth 5.0.
Multi-channel USB interface, serial port.

Electromagnetic Compatibility

Strong anti-electromagnetic interference and electromagnetic compatibility.

Datasheet of AD-0160-RK3588 Media Player Box

PRODUCT INFORMATION

Product description

RK3588 industrial control box

Model Number:

AD-0160

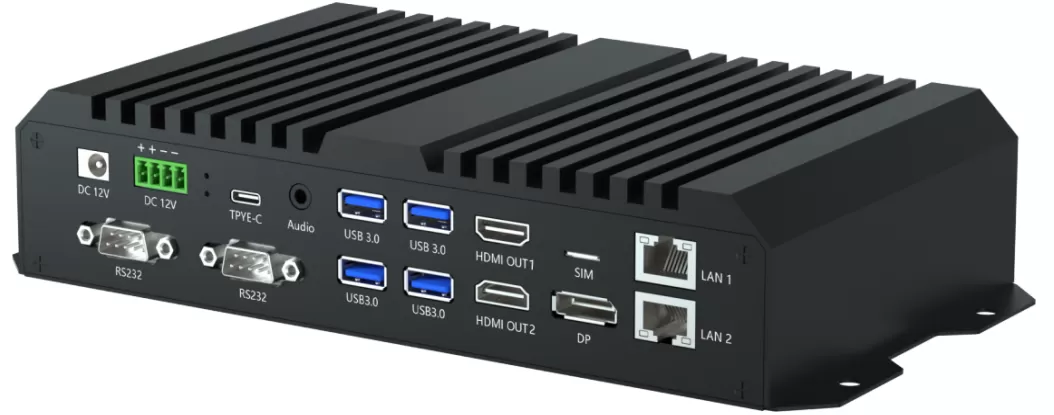

Datasheet of 0160-RK3588 Media Player Box

System

CPU

RK3588 octa-core CPU 8nm process 4 Cortex-A76 and 4 x Cortex-A55

GPU

ARM Mali G610 MP4 GPU

NPU

INT4/INT8/INT16/FP16 mixed computing capability with up to 6TOPs of computing power (INT8)

RAM

8GB/16G (optional)

Internal memory

32GB/64GB/128GB/256GB(optional)

Operating system

Android 12

Network

WiFi

IEEE 802.11a/b/g/n/ac

Dual wired network

Support 1000M wired network network*2

Mobile Network

Supports wireless 4G network

Bluetooth

Bluetooth 5.0

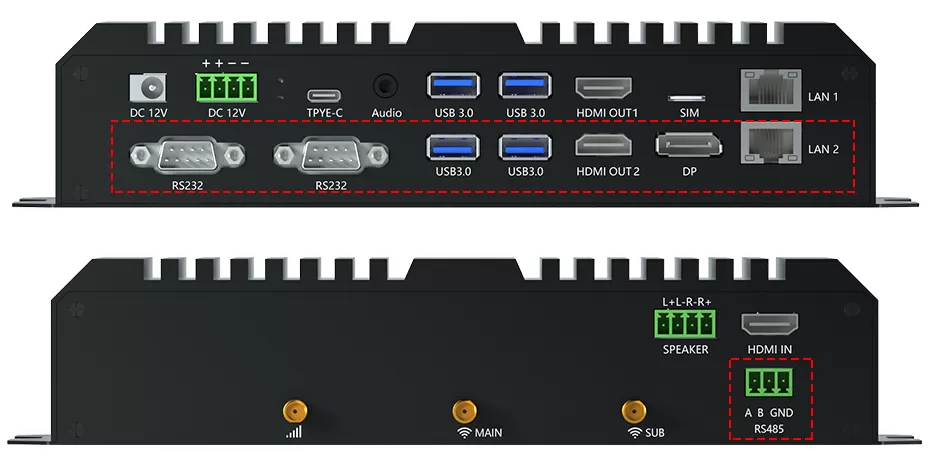

Motherboard Interface

TYPE_C

Standard Type_c*1

DC holder*1

Front 5.5/2.5mm

DC terminal input interface*1

4PIN pitch 3.81 terminal power input port*1

Headphones

3.5MM support stereo with MIC headphone output port

USB 3.0

USB 3.0_A*2

HDMI_OUT_1

Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display)

SIM card

SIM card port*1

Ethernet port

Support 10/100/1000M Ethernet*1

Speaker

Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81mm green terminals * 1

HDMI_IN*1

Support HDMI 2.0_4K input*1

Sub-board interface

RS232 COM port

RS232 output DB9*2

USB 3.0

USB 3.0_A port *2

HDMI_OUT_2

HDMI 4K 60HZ output*1 (this interface does not work when HDMI_OUT 1 is selected to output 8K)

DP(Display Port)

DP display output interface*1 7680x4320@30Hz output*1

Ethernet port

Support 10/100/1000M Ethernet*1

M.2 internal SSD interface

M.2 Built-in SSD expansion interface*1

RS485

RS485 3PIN pitch 3.81 green terminal block*1

Usage environment

Working temperature/humidity

Temperature: -20-60℃ Humidity 5%-85%RH(non-condensing)

Storage temperature/humidity

Temperature: -20-70℃ Humidity 5%-85%RH(non-condensing)

Housing

Color

Black

Housing

Material

Aluminum alloy + metal profile

Size

Motherboard Size

200*125mm

Sub-board size

200*125mm

Product Size

244*128*49.5mm

Other

Indicator light

Red and blue 2 colors

Button

Upgrade key*1

Power adapter

DC: 12V/3A

Product Measurement(mm)

Unit (Without packaging)			Inner Box 1pcs/box			Outer Carton 5 pcs/CTN
L	W	H	L	W	H	L	W	H
24412849.5mm			310200150mm			530310200mm
Net(kg)			G.W(kg)	2.5kg		G.W(kg)	9.5kg

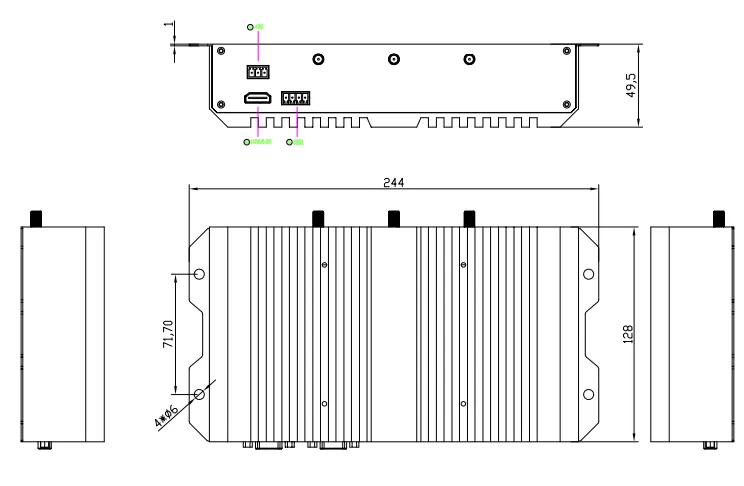

Structural Drawings

structural of ad0160 rk3588
